The 3D & VR PluraView Monitor Family – Suitable for every stereo display requirement

Two different assembly sizes – three resolutions (Full HD, 2.5K and 4K UHD) -3D-Stereo or VR

To meet the different requirements of our customers for screen resolution, monitor size and possible desktop space restrictions, we offer the 3D PluraView product family in two different assembly sizes, four monitor sizes and in three different screen resolutions.

Starting with a smaller form-factor for the PluraView system, Full HD (1,920 x 1,080) resolutions are available for the 22” and 24” PluraView screen sizes. Their compact assembly with reduced depth is suitable for smaller desktop sizes and therefore ideal for production offices with multiple workstations in one room.

Our second assembly is designed for 27” and 28” monitors. The 3D PluraView 2.5 model offers a screen diagonal of 27“ at a 2.5K resolution with 2.560 x 1.440 pixels. The VR PluraView 4K visualizes 3.840 x 2.160 pixels on a screen diagonal of 28“ and is the top model of the PluraView family. The larger assembly also features an integrated DisplayPort 1.2 screen mirroring card. All 3D PluraView models feature integrated, latency-free mirror electronics (G-sync, Free-Sync enabled) for the upper screen. These electronics are independent of any drivers or operating system.

3D PluraView Monitor – Specifications

Two different assemblies – four monitor screen sizes (22”, 24”, 27” & 28”)

Graphics Card Recommendation

Any Quad-Buffer capable NVIDIA Quadro and AMD FirePRO / RadeonPRO cards, possessing at least 2x DisplayPort 1.1 monitor outputs. Utilizing an additional side monitor with the 3D PluraView is recommended. For the 4K/UHD display, only (!) the AMD FirePRO / RadeonPRO graphics cards with 2x DisplayPort 1.2 or mini-DisplayPort 1.2 will work.

Please select your model:

(Just click on the model picture)

	22” FHD	24” FHD
Display	21.5” (546 mm) Screen Size 2x 1,920 x 1,080 Resolution (2.1 MP) 16.7 Million Colors (8-bit) 250 cd/m² Brightness	24” (610 mm) Screen Size 2x 1,920 x 1,080 Resolution (2.1 MP) 16.7 Million Colors (8-bit) 350 cd/m² Brightness
	LED BackLit-Technology 2 ms Response Time 170 °/160 ° Viewing Angle (H/V)	LED BackLit-Technology 1 ms Response Time 170 °/160 ° Viewing Angle (H/V)
	Contrast Ratio: 200,000: 1 ACR	Contrast Ratio: 1,000 : 1 static
Frame Rate	60 Hz	144 Hz
3D-Characteristics	160 cd/m² Brightness with glasses 1,920 x 1,080 per eye resolution	210 cd/m² Brightness with glasses 1,920 x 1,080 per eye resolution
3D-Characteristics	Linear Polarization 45°/135° beam-splitter: 50%-transparency, polarized mirror
3D-Formats	Quad Buffered OpenGL, Side-by-Side, Top-Bottom, Quad-Buffered DirectX
Operating Systems	Windows / Linux / macOS-Compatibility, Windows-10 Certification
Power Consumption	Power Consumption 53 W typical; max. 1W in Power Management Mode; Annual Power Consumption 94 kWh / year	Power Consumption 61 W typical; max. 1W in Power Management Mode; Annual Power Consumption 135 kWh / year
Power Consumption	Power Management VESA DPMS™, Energy Star 6.0 Efficiency Class E
Weight	23 kg system weight with stand	26 kg system weight with stand
Measurements	54 x 59 x 46 cm (W x H x D)	61 x 60 x 49 cm (W x H x D)
Interfaces	2x DisplayPort 1.1 cable 2.5 m (integrated)	2x DisplayPort 1.2 cable 2.5 m
Interfaces	1 x main plug AC 100 - 240 V, 50 / 60 Hz
Audio	Integrated Speakers 2 x 2 W
Design	Diamond Dark Alu/Steel Construction Integrated Electronics Adjustable Stand Made in Germany
Technical Notes	2x DisplayPort 1.1 output from the graphics card is required, optionally available as dual DVI version	2x DisplayPort 1.2 output from the graphics card is required for 144Hz; with DP 1.1 output - 120Hz screen refresh. FreeSync support with AMD graphics cards
Graphics Card Requirements	Any Quad-Buffer capable NVIDIA Quadro and AMD FirePRO / RadeonPRO cards, which have at least 2x DisplayPort 1.1 monitor outputs. It is recommended to use an additional side monitor for the 3D PluraView system, which is adapted to the polarization of the stereo system.
Warranty	1 year manufacturer warranty, with optional carepack extended up to 5 Years

	27” 2,5K	28” 4K/UHD
Display	27” (686 mm) Screen Size 2x 2,560 x 1,440 Resolution (3.7 MP) 16.7 Million Colors (8-bit) 350 cd/m² Brightness	28” (711 mm) Screen Size 2x 3,840 x 2,160 Resolution (8.3 MP) 1,073 Billion Colors (10-bit*) 300 cd/m² Brightness
	LED BackLit-Technology 1 ms Response Time 170 °/160 ° Viewing Angle (H/V) BlackTuner for enhancement of shadow areas
	Contrast Ratio: 80,000,000 : 1 ACR	Contrast Ratio: 12,000,000 : 1 ACR
Frame Rate	60 Hz	60 Hz
3D-Characteristics	210 cd/m² Brightness with glasses 2,560 x 1,440 per eye resolution	180 cd/m² Brightness with glasses 3,840 x 2,160 per eye resolution
3D-Characteristics	Linear Polarization 45°/135° beam-splitter: 50%-transparency, polarized mirror
3D-Formats	Quad-Buffered OpenGL, Side-by-Side, Top-Bottom, Quad Buffered DirectX
Operating Systems	Windows / Linux / macOS-Compatibility, Windows-10 Certification
Power Consumption	Power Consumption 75 W typical; max. 1W in Power Management Mode; Annual Power Consumption 131 kWh / year	Power Consumption 115 W typical; max. 1W in Power Management Mode; Annual Power Consumption 207 kWh / year
Power Consumption	Power Management VESA DPMS™, Energy Star 6.0 Efficiency Class G
Weight	25 kg system weight with stand	26 kg system weight with stand
Measurements	80 x 68 x 54 cm (W x H x D)	80 x 68 x 54 cm (W x H x D)
Interfaces	2x DisplayPort 1.2 cable 3 m 2x USB 2.0	2x DisplayPort 1.2 cable 3 m 2x USB 3.0
Interfaces	1 x main plug AC 100 - 240 V, 50 / 60 Hz with power switch and fuse 3.15 A
Audio	Integrated Speakers 2 x 2.5 W	Integrated Speakers 2 x 3 W
Design	Diamond Dark Aluminum Construction Integrated Electronics Adjustable Stand Made in Germany
Technical Notes	2x DisplayPort 1.1 output from the graphics card is required AMD FreeSync support graphics cards	2x DisplayPort 1.2 output from the graphics card is required for 60Hz; with DP 1.1 output - 30Hz screen refresh. AMD FreeSync support graphics cards
Graphics Card Requirements	Any Quad-Buffer capable NVIDIA Quadro and AMD FirePRO / RadeonPRO cards, which have at least 2x DisplayPort 1.1 monitor outputs. It is recommended to use a side monitor for the 3D PluraView system, which is adapted to the polarization of the stereo system. * The feature 10-bit color depth with Quad-Buffer 3D stereo only works with AMD graphics cards.
Warranty	1 year manufacturer warranty, with optional carepack extended up to 5 Years

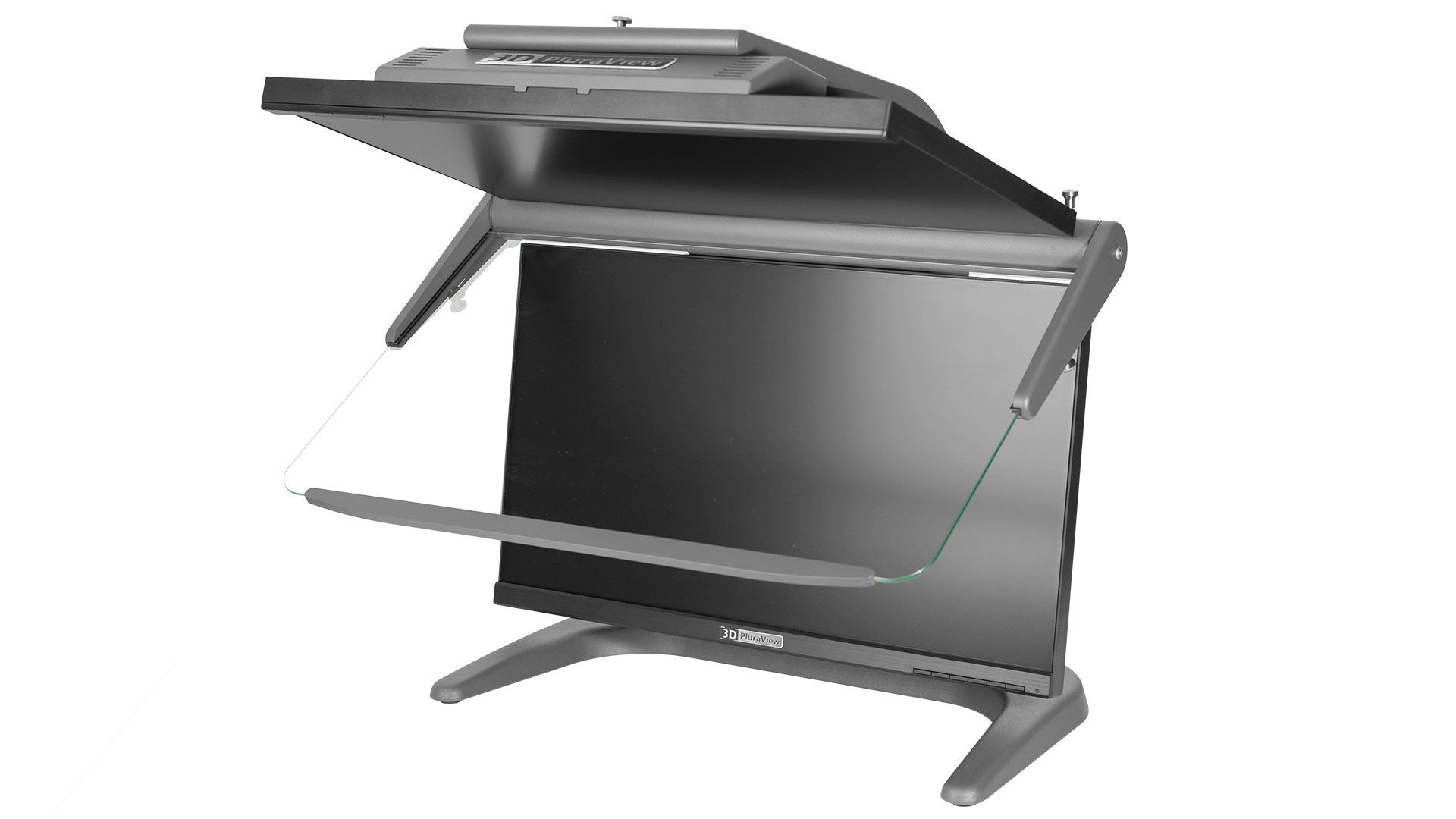

3D PluraView System – Product Images

Two assembly sizes – four screen sizes and three different resolutions

	28” 4K/UHD
Display	28” (16:9) screen 2x 3.840 x 2.160 resolution (8.3 MP) 1,073 billion colours (10-bit*) 300 cd/m2 brightness LED Backlight Technology 1 ms response time 170°/160° viewing angle (H/V) BlackTuner for object detection in dark areas Contrast ratio 12 000 000: 1 ACR
3D properties	180 cd/m2 brightness with glasses 3840 x 2160 resolution per eye Linear polarisation 45°/135° Beam splitter: semi-transparent mirror Infrared tracking
3D formats	Quad Buffered OpenGL, Side-by-Side, Top-Bottom, Quad Buffered DirectX
Tracking	Four (4) different tracking protocols are supported: VRPN / Dtrack / trackd / native implementation of the PS-Tech SDK in C ++ Supports 15 targets at the same time! Calibration-free user interaction tracker Extremely wide field of view of almost 180 degrees
Operating systems	32 & 64 bit Windows / Linux Support
Power consumption	Rating typically 98 watts; maximum 1 W in power management mode, annual power consumption 173 kWh/year Power Management VESA DPMS™, Energy Star 6.0 Power effi ciency class B
Weight	27 kg, set with stand
Dimensions	80 x 68 x 54 cm (W x H x D)
Integrated ports	2x DisplayPort 1.2 cable 3 m 2x USB 3.0 for IR tracking 1 x mains connector AC 100 - 240 V, 50 / 60 Hz with main switch and 3.15 A microfuse
Audio	Integrated speakers 2 x 3 W
Highlights	Equipped with a high-tech tracking system, the VR PluraView now allows interaction with 3D stereo models and content across all axes: zooming, rotating and tilting without a mouse. The system supports up to 15 tracking devices at the same time and is therefore perfect for finger tracking scenarios.
Technical information	Easy to use native C / C ++ SDK and interface for C# and Python. Interface is also supported through VRPN, Trackd, Dtrack emulation.
Warranty	1 year unlimited warranty, can be extended to up to 5 years with CarePack

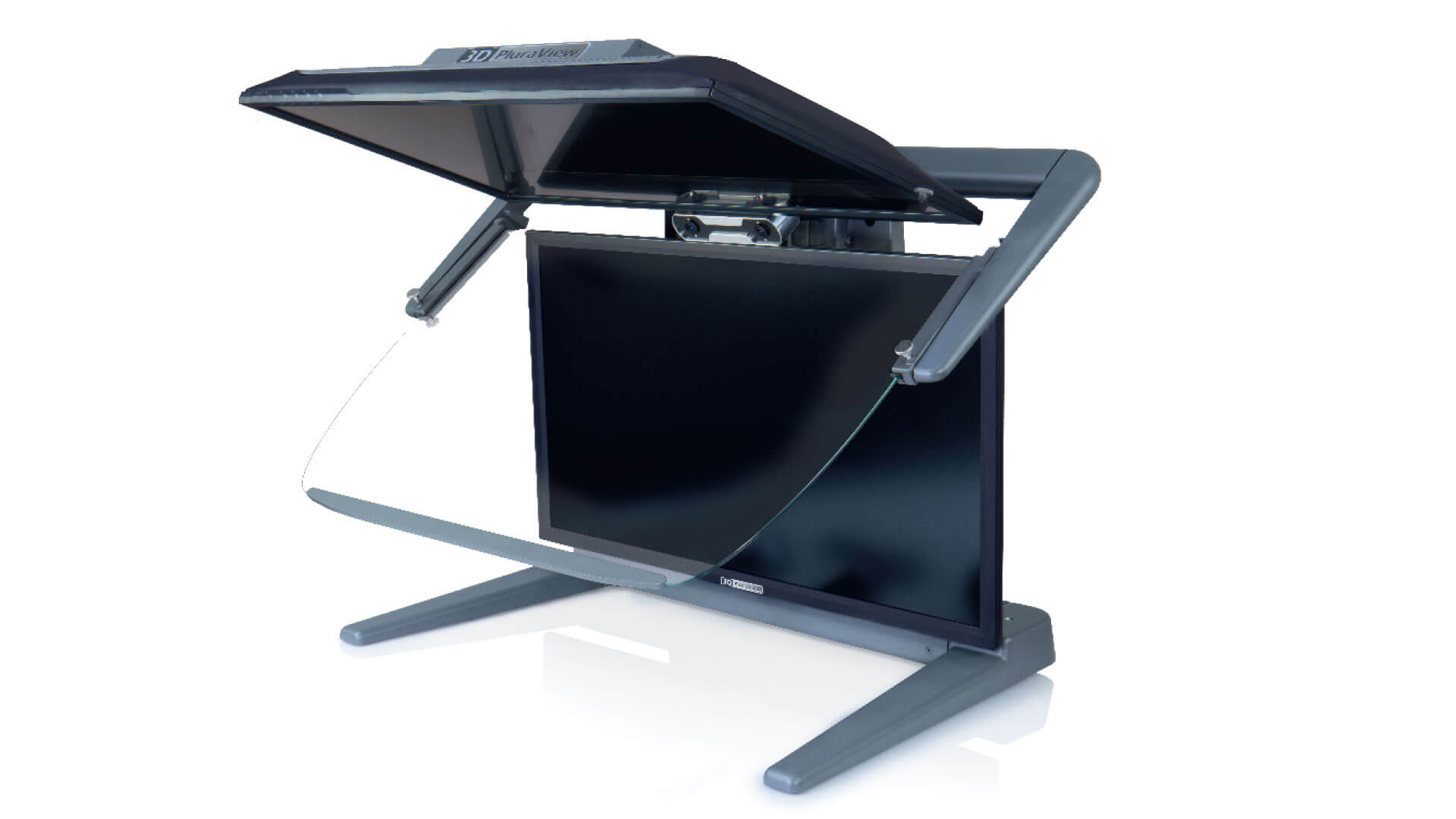

VR PluraView System – Product Images

3D PluraView – Technology & History

3D PluraView System – Beam-splitter technology

How the passive 3D stereo system works

The 3D PluraView has consistently evolved from Planar’s successful beam-splitter technology, both in function and technology, as well as in design, quality and user ergonomics.

Established, mature beam-splitter technology with semi-transparent mirror
Passive polarized filter glasses without flicker effect
Two professional FHD, 2.5K or 4K monitors
Highest component quality with a solid housing and stand – made in Germany

3D PLANAR – 2005 until today

The development of passive 3D stereo systems
