VR PluraView 4K

Real Virtual Reality for the CAx Desktop


VR PluraView 4K – High-End Virtual Reality on the Desktop

Take VR meetings and interaction to the next level with PluraView and 3D glasses

  • Head tracking for an intuitive VR experience

  • Object tracking with trackballs or 3D tracking pens

  • Flicker-free display for easy and comfortable 3D viewing

  • Realistic, intuitive model interaction

  • Maximum brightness – suitable for daylight

  • Ideal complement to HMD systems and immersive VR

3D CAD becomes Virtual Reality – VR PluraView monitors from Schneider Digital

A revolution in 3D-stereo and VR work environments for CAx applications

With the VR PluraView monitors, the term “3D CAD” takes on a whole new meaning for CAx, i.e. engineering, manufacturing, construction and design! Our innovative VR system realizes comfortable, intuitive working in Virtual Reality environments and stereoscopic visualization today, not just sometime in the future.

The new VR PluraView is a passive-display Virtual Reality stereo monitor. As a fully-fledged desktop VR/AR system, it is based on the successful 3D PluraView monitors from Schneider Digital. The tried and tested, flicker-free beam-splitter technology allows the user to work in an intuitive VR environment without becoming tired, even over long periods. Transparent, feather-light polarized glasses allow unrestricted communication with customers and colleagues.

Equipped with a high-tech tracking system, the VR PluraView now allows smooth interaction with 3D stereo content across all 3D axes in X, Y, Z, plus zooming, rotating and tilting - without a mouse! The VR PluraView connects to more than 15 tracking devices and is ideal for head -, hand- or finger-tracking interfaces.

3D PluraView CAx Anwendung


Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden


Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Unrestricted communication with colleagues and customers during VR meetings

Flicker-free for
stress-free 3D work

Object tracking with trackballs or 3D-Pens for realistic model interaction

Provides 4K monitor resolution per eye, compatible with office daylight conditions

Ideal complement to
HMD and immersive VR systems

Compatible with all VR software
and most CAD environments

The ideal complement to HMD and immersive VR systems

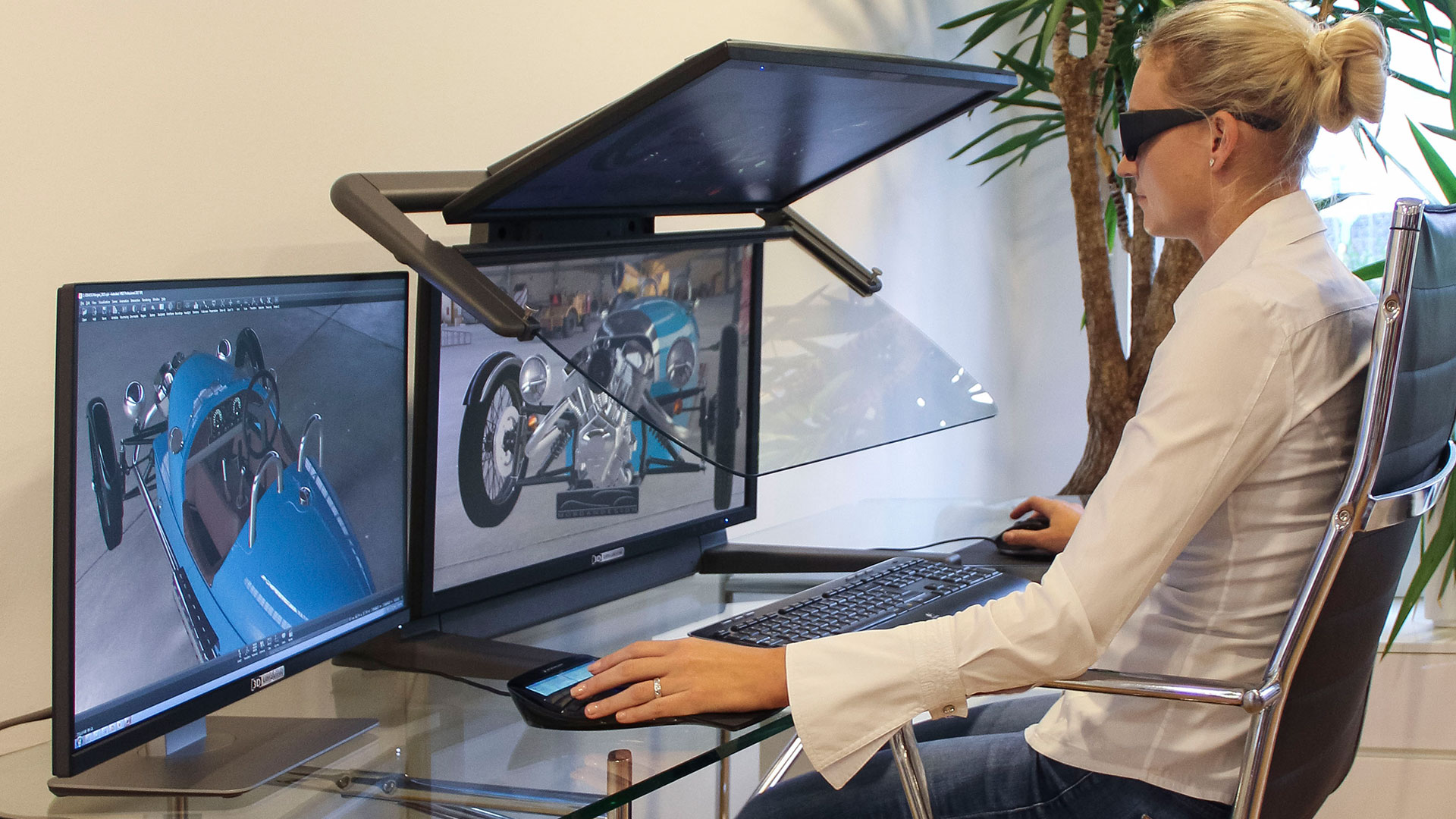

As a true desktop system, the VR PluraView represents the ideal complement to a Head-Mounted Display (HMD). With our light-weight VR glasses, professional users quickly get a excellent sense of orientation and dimensions in their 3D models. Without any special preparations or additional HMD devices, results can be easily discussed by several participants on the 28” PluraView system and modifications can implemented immediately in every detail.

The transparent and light-weight, polarized glasses help maintain eye contact and allow users to have a sip of water in between without having to take the glasses off.


VR PluraView functions and benefits

  • Simultaneous, smooth head and object tracking for intuitive VR work

  • Model interaction through head tracking, trackball, 3D pen and gesture devices

  • Optional use of 2D / 3D mouse and stationary 3D input devices, augmented or replaced by head tracking and gesture recognition

  • Very comfortable light-weight 3D glasses with a wide viewing angle

  • Transparent lenses allow unrestricted communication with colleagues and customers

  • Supports 15 targets at the same time!

  • Calibration free user interaction tracker

  • Very high brightness levels allow VR work in office daylight conditions

  • Exceptional, detail-rich VR display quality through 4K (3840 × 2160) resolution per eye

  • Flicker-free, passive stereo system with beam-splitter technology

  • Compatible with all VR software and most CAD environments

  • Ideal complement to HMD and immersive VR systems

  • Four (4) different tracking protocols are supported: VRPN / Dtrack / trackd / native implementation of the PS-Tech SDK in C ++

Designed for CAD/CAM/CAE (CAx) professionals

Amazing VR experience for daily long-term operations

The VR PluraView’s integrated infrared tracking system immerses the user “virtually” inside the 3D environment. Large retroreflective markers on the passive 3D glasses allow for reliable detection by IR cameras and enable smooth movement in a virtual space when looking at models from different perspectives. 3D models become “reality” as with head-mounted devices. Using the VR PluraView, the user views the model intuitively from different angles through the 3D glasses, bearing IR-markers. A multitude of separate tracking devices can be connected in seconds and complement our interactive tracking pen or passive tracking balls, which allow for especially realistic 3D model handling.

The great advantage of the beam-splitter technology: In contrast to active 3D systems with “flickering”, shuttered glasses, the VR PluraView guarantees a totally flicker-free stereo experience! This allows not only short 3D visualizations or presentations but facilitates fatigue-free permanent work within VR environments. In addition, the superlative display quality with 10-bit color depth, 4K resolution per eye, and exceptional display brightness provides for comfortable VR work even in office daylight conditions.

The new Schneider Digital VR PluraView offers top-quality innovative beam-splitter and tracking technology for VR visualization on the desktop. The VR PluraView is ideal for all stereo software applications in a wide variety of industries:

Your Software not in the list?
Contact us: [email protected]

  • Simulation & VR Training

  • CGI / 3D video processing

  • Mechanical design / CAD

  • Architectural design

  • 3D Urban planning, GIS

  • Molecular research / Crystallography

  • Medical applications, e.g. computer tomography, surgery planning

  • Biochemistry / stereo microscopy

  • BIM (Building Information Modeling)

  • Mesh-model interaction


CAD software applications compatible with VR PluraView

The VR PluraView system can be operated with many CAD plug-and-play systems. Software solutions such as Siemens NX, Catia, HiCAD or Kompas-3D natively support 3D stereo and can be used fully with the VR PluraView. On other CAD systems, the file viewers support 3D stereo, for example PTC Creo data with CreoView, or for SolidWorks through eDrawings. AutoCAD and Inventor data can be viewed stereoscopically through NavisWorks for example.

Your Software not in the list?
Contact us: [email protected]


Dassault Systems
eDrawings for Solidworks
CAD Assistant
Creo View MCAD
Gstarsoft Co., Ltd
HaoChen 3D
Robert McNeel & Associates.
3D Systems, Inc.
Geomagic Freeform
E3D Design
Dassault Systems
VRED Professional
Schott Systeme
Pictures by PC
Salome Consortium
Salome Platform


VRED Professional
Dassault Systems
3DExcite Deltagen
Dassault Systems
Accel VR
Accel VR
Patchwork 3D
Patchwork 3D Community
Sovelia Visualizer
Store Visualizer
SkyReal VR
SkyReal VR
Fraunhofer HHI
STAN - Stereoscopic Analyzer


NovaFlow & Solid
Open Source Robotics Fd.
