The innovative 3D-Stereo monitor
3D PluraView – The sustainable High-End-Display

Flicker free and high-resolution visualization for a perfect 3D-Stereo experience

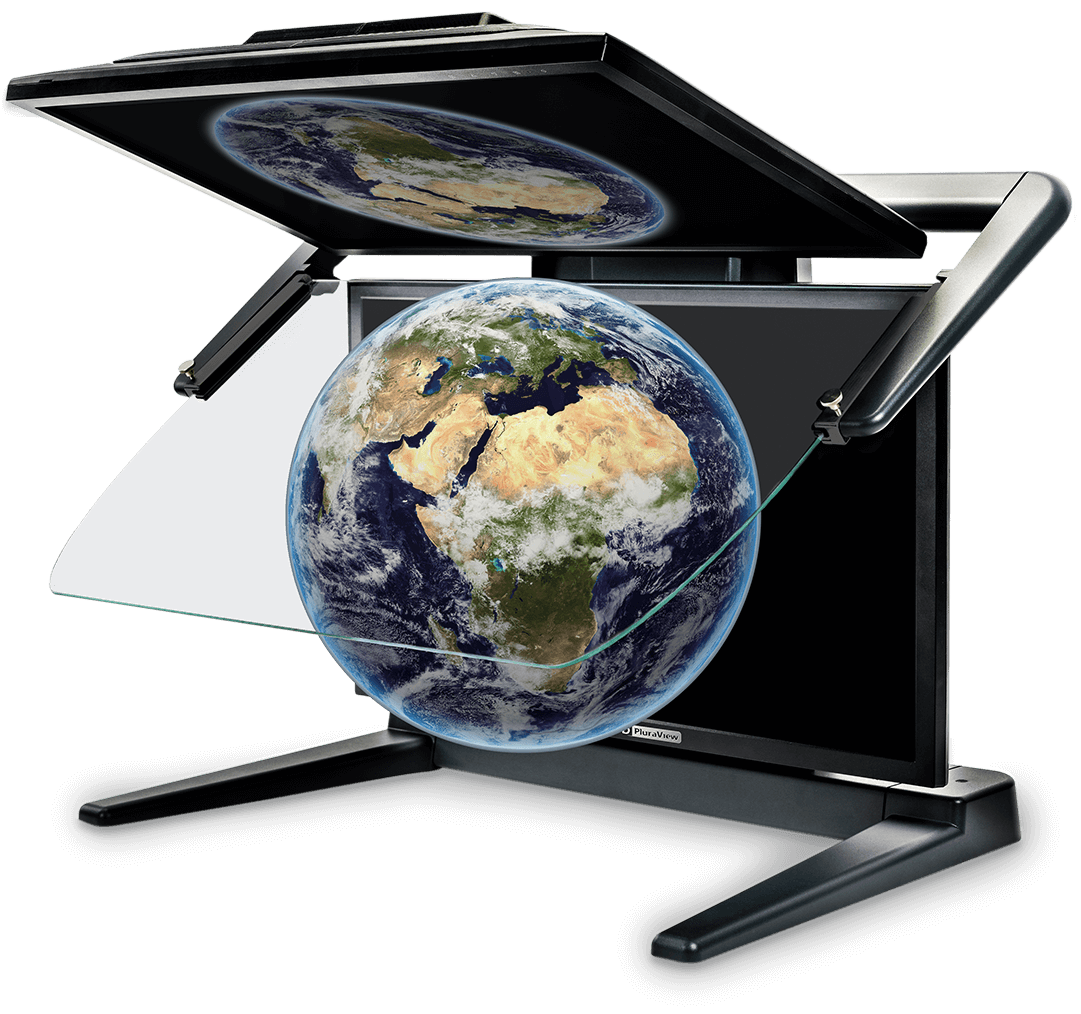

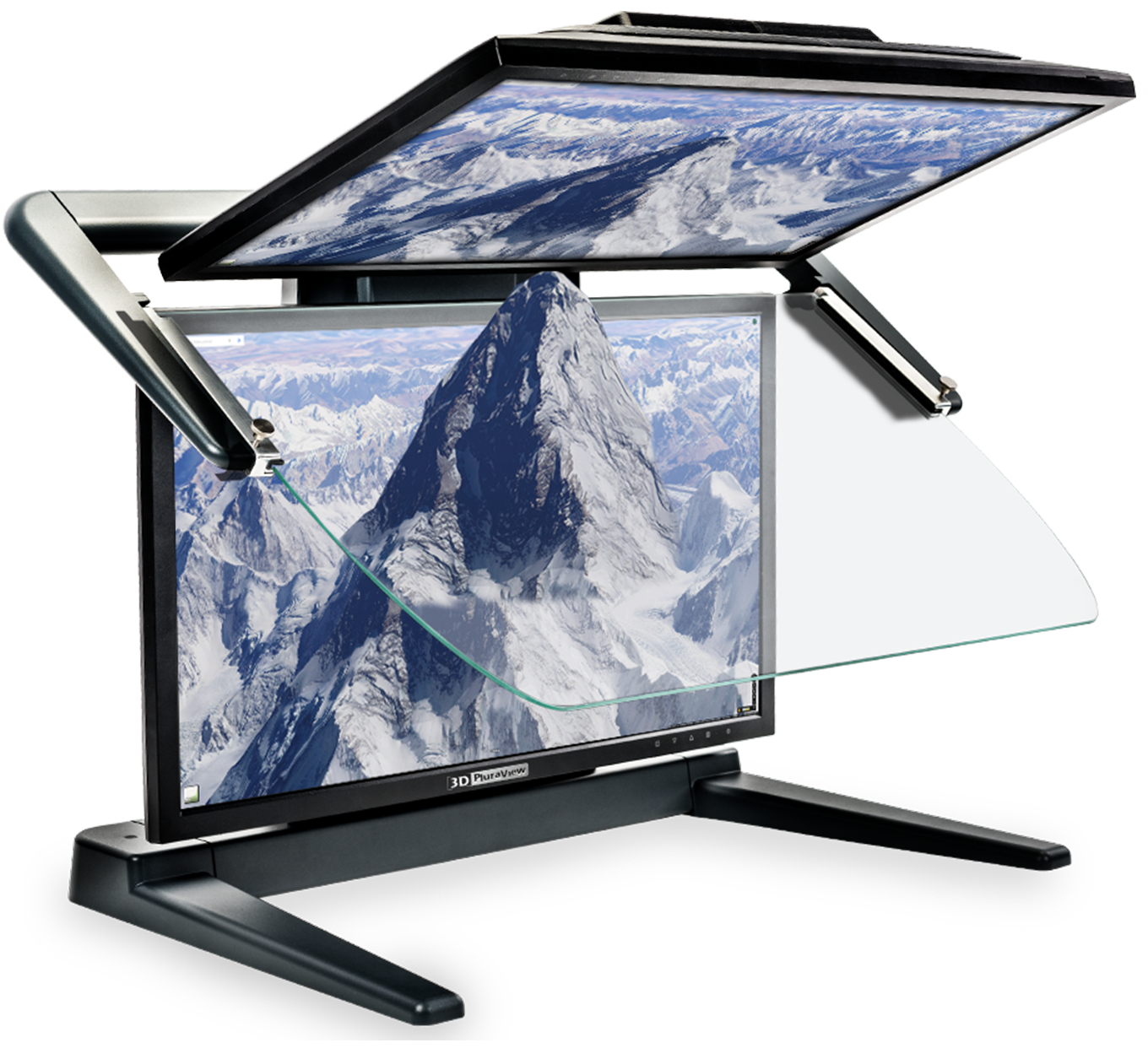

The 3D PluraView from Schneider Digital is the further developed successor of the folded PLANAR Beamsplitter-Series. Innovative, reliable technology is the foundation for precise, pixel accurate, stereoscopic image evaluation in highest quality, even in daylight. The 3D PluraView Beamsplitter-Technology delivers the full monitor resolution up to 4K in brilliant brightness, thanks to one display per eye.

That allows users to work comfortable and effortless in all 3D-Stereo-Applications. The new BlackTuner-Technology of the 3D PluraView supports the user even in dark picture areas to detect objects easily. A response time of only 1 ms reduces “Ghosting” and fuzziness. That’s the key to a perfect 3D-Stereovisualisation in all professional areas of applications.




Flicker free

for professional continuous use


Wide Visual Angle

Wide Visual Angle – Multi-User capability

Highest Brightness

Highest Brightness – Daylight suitable


Certified

Certified for Photogrammetry and GIS

Highest Resolution

Highest resolution – up to 4K/UHD


Elegant Design

Highest Quality – Made in Germany


Highlights


  • Suitable for professional, eye-friendly continuous use all day long

  • Highest Brightness – darkened rooms for 3D-Stereo work are a thing of the past!

  • Razor-sharp picture quality (up to 4K) and and presentation of even the finest details on a 27/28” screen

  • Certified for all common 3D-Stereo software-applications for GIS, photogrammetry, mapping and scanning

  • Newest technology, further developed Replacement of the folded Planet Beamsplitter monitor series

  • User-friendly Plug & Play system – no complex cabling, set up or configuration

Designed for 3D-Stereo Professionals

Unique 3D-Stereo experience – Daily continuous operation experience

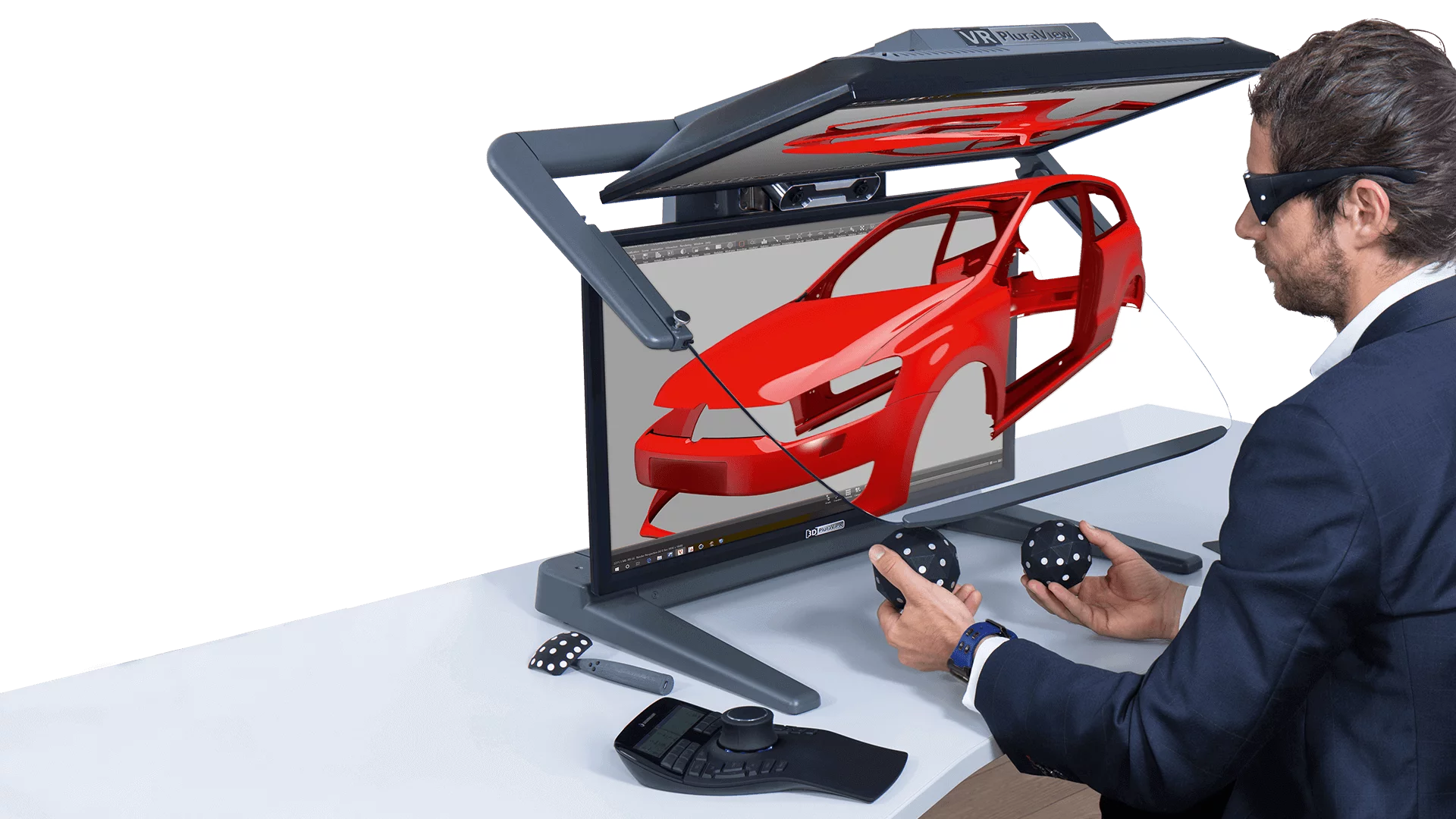

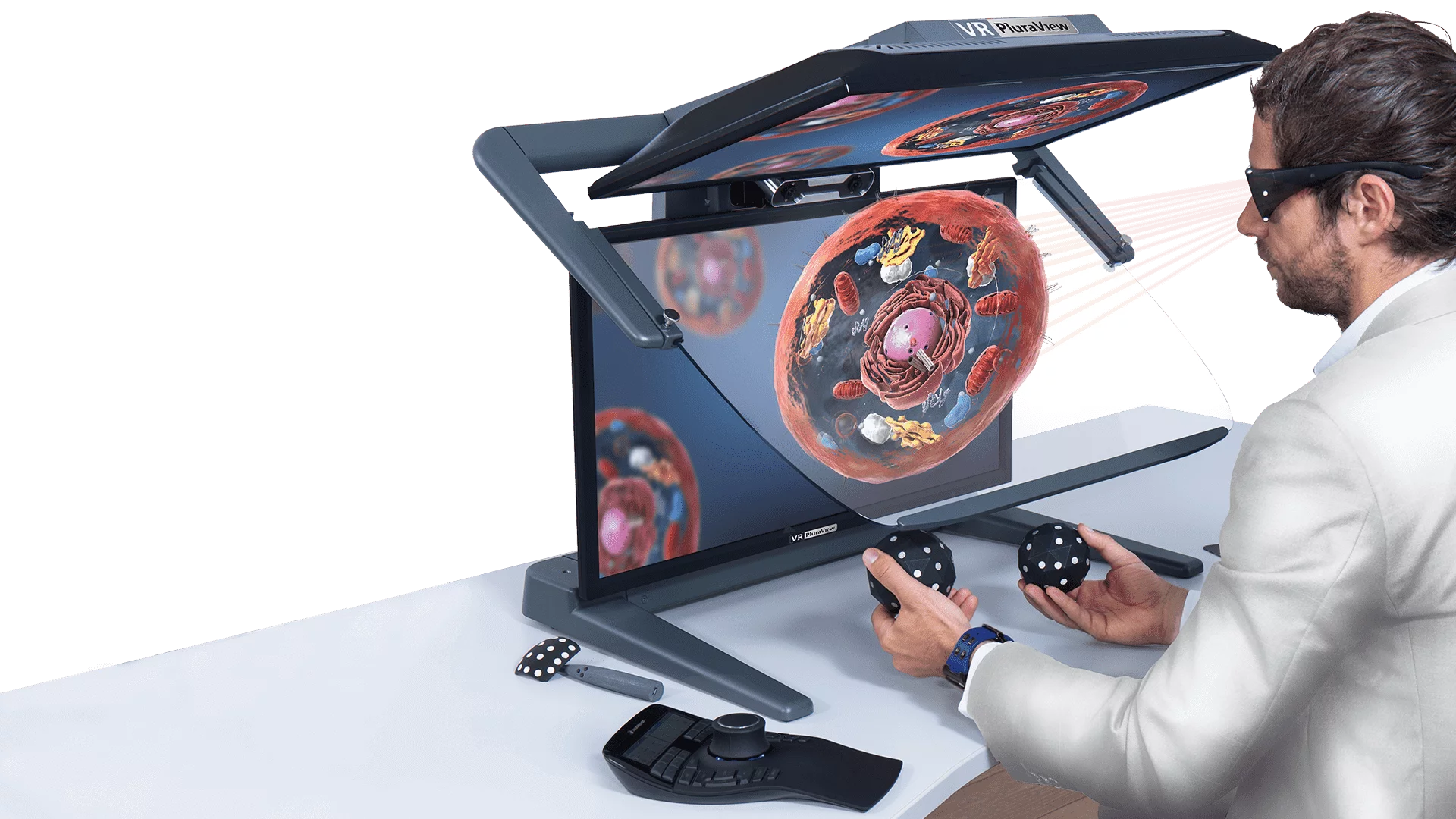

The new Schneider Digital 3D PluraView monitor provides an innovative Beamsplitter-Technology for highest quality in stereoscopic illustration at desktop monitors.
The 3D PluraView is ideally suited for all Stereo-Software-Applications in highly diverse branches:


  • GIS / Mapping

  • Photogrammetry

  • Oil & Gas prospecting

  • Molecular research and design


  • CGI / 3D Video editing

  • Mechanical Design / CAD

  • Crystallography / biochemistry

  • Industrial Measuring / Laser Scanning


  • Simulation & VR training

  • 3D City model visualization

  • Computed tomography & surgical planning

  • Archeology



3D PluraView – Premium Partners and applications

(Klick for more information)


TerraStereo

South

Summit Evolution

Match-AT / DTMaster /UASMaster

Geosystems

Solitech

MFB


3D PluraView supported applications:


Z / I ImageStation

Vr Two

Summit Evolution

TerraStereo

Digi3D

Softplotter / KDSP

Gcarto

RhinoTerrain

Geomedia

Leica Geosystems

Match-AT / DTMaster /UASMaster

PhotoScan

PurVIEW

Socet Set / Socet GXP

IMAGINE Photogrammetry

Atlas

Strabo

Photomod

uSMART

VirtuoZo

ArcGIS

  • 3d-pluraview-bild-grid-7
  • 3d-pluraview-bild-grid-5
  • 3d-pluraview-bild-grid-6
  • 3d-pluraview-bild-grid-16

3D PluraView Monitor – Advantages & Benefits

Choose the reference in stereo visualization!


3D PluraView functions and advantages


  • Synchronous, latency-free image signal thanks to a new developed, in monitor case integrated mirror card

  • Significantly reduced Ghosting thanks to our exactly adjusted mirror and optimized polarization glasses

  • Innovative BlackTuner-Technology for reliable object detection in dark image areas

  • Easily accessible DisplayPort 1.1 ports

  • Centralized power supply with an integrated power switch for complete disconnection from the mains supply. Therefore O watt energy consumption with the power switched off

  • Mirror fine adjustment for exact alignment

  • Highest product quality – Made in Germany

Limitations of alternative 3D-Displays


  • The active Shutter-Technology provides as a matter of principle a very dark 3D-Stereo image.

  • High-frequency shutter causes little tiredness on the eye and enhances quick fatigue.

  • Ambient light additionally strengthens flickering.

  • Line by line circular polarized displays reduce the resolution by 50%

  • Pixel-precise work is impossible with line by linepolarized monitors. Writings and menus aredifficult to read.

  • The Filter on the monitor and 3D glasses lead also to a dark 3D-Stereo image.


  • 3d-pluraview-bild-grid-1
  • 3d-pluraview-bild-grid-3
  • 3d-pluraview-bild-grid-20
  • 3d-pluraview-bild-grid-4

3D PluraView Monitor – Specifications

Including experienced users, our engineers developed the PLANAR Beamsplitter-Technology:


27″ 2,5K 28″ 4K/UHD
Displays 27” (16:9) Screen Size
2.560 x 1.440 Resolution (3.7 MP)
16.7 Million Colours (8-Bit)
350cd/m2 Brightness
28” (16:9) Screen Size
3.840 x 2.160 Resolution (8.3 MP)
1,073 Billion Colours (10-Bit)
300cd/m2 Brightness
LED Blacklight-Technology
BlackTuner for lightening of the shades
300cd/m² Brightness
Contrast Ratio: 12 000 000:1 ACR
1ms Response Time
170°/160° Viewing Angle (H/V)
3D Display 210cd/m2 Brightness with glasses
2.560 x 1.440 per Eye Resolution
180cd/m² Brightness with glasses
3.840 x 2.160 per Eye Resolution
Linear Polarization 45°/135° Contrast Ratio 12.000:1
Beamsplitter: half transparency Mirror
3D-Compability Quad Buffered OpenGL Applications
Side-by-Side mirrored Applications
Top-Bottom mirrored Applications
General Features Windows, macOS-Compatibility
Windows-10 Certification
Energy Star 6.0-Energy
Power Power Consumption 99W, typical; max. 1W
in Power Management Mode
Annual Power Consumption 175 kWh / year
Power Consumption 70W, typical; max. 1W
in Power Management Mode
Annual Power Consumption 130 kWh / year
Power Management VESA DPMS™, Energy Star
Efficiency Class B
Weight 25kg, set weight with stand 26kg, set weight with stand
Measurements 80 x 68 x 54 cm (WxHxD) 80 x 68 x 54 cm (WxHxD)
Interfaces 2x integrated HDMI ports
incl. 2x DisplayPort/HDMI cables
2x DisplayPort 1.2 cable
incl. mini DisplayPort adapter
2x integrated USB ports
1x main plug AC 100 – 240 V, 50 / 60 Hz
Audio Integrated Speaker 2 x 2 W Integrated Speaker 2 x 3 W
Design Diamond Dark
Aluminum Construction
Integrated Electronics
Adjustable Stand
Made in Germany
Technical Notes Works with NVIDIA Quadro or AMD FirePRO & RADEON PRO Graphic Cards
Support AMD FreeSync™ Technology
Works only with AMD FirePRO & RADEON PRO with native DisplayPort or mini DisplayPort connection
Scope of delivery 1 Monitor stand with lower monitor and pre-installed connection cables
1 Upper monitor bracket with monitor
1 Beam splitter mirror with bracket
2 Plastic washers
2 Thumb screws
2 DP to HDMI 3.0 m monitor cable
2 Allen key (2.5 and 3 mm)
1 Power cable approx. 2.0 m
3 “3D UltraView” polarising glasses
Warranty 1 Year Warranty without exclusion, with carepack extended up to 5 Years

Graphic Card Recommendation


Any QuadBuffer capable NVIDIA Quadro and AMD FirePro / RadeonPRO cards possessing at least 2x DisplayPort 1.1 monitor outputs. Utilizing an additional side monitor with the 3D PluraView is recommended. For the 4K/UHD only AMD FirePRO / RADEON PRO with 2x DisplayPort 1.2 or mini DisplayPort 1.2 will work.

Brochure-Download


3D PluraView Folder
  • 3d-pluraview-produktbild-seite
  • 3d-pluraview-produktbild-front
  • 3d-pluraview-produktbild-schraeg
  • 3d-pluraview-produktbild-hinten-dunkel

Complete-Solutions – Stealth 3D-Mouse


The perfect mesurement device for photogrammetry and mapping


The Stealth Mouse is an ergonomic, high performance 3D hand controller proven to enhance productivity and comfort for users of the demanding 3D software applications. With 10 programmable buttons and 33 programmable functions, the user can have functions and macros right at the fingertips. Operating together with or without the traditional mouse, the Stealth 3D Mouse delivers an efficient and balanced way to work while reducing hand fatigue.


  • USB plug-and-play compatibility. (COM port still available if required)
  • Supported by ALL Photogrammetric Application Software
  • Made in the USA and design protected by USA Patent number D457, 884 (S1), D615,980 (S3), D718,309 (S4)
  • Manufacturer Warranty Repair and Hardware & Software support at our Sales & Service Centers
  • Comfortable two-handed operational grip for GIS, Photogrammetry and Mapping Applications use
  • Optical mouse mechanism for fast high resolution that works well on ALL non-reflective surfaces and requires no maintenance
  • High resolution Z-wheel with 1.024 steps per revolution providing fast and accurate pointing
  • High precision X-Y-laser navigation for accurate position control. Soft acting force, long life buttons rated at 10 million cycles for maximum productivity
  • sd-stealth-3d-mouse-3
  • sd-stealth-3d-mouse-2
  • sd-stealth-3d-mouse-1
  • 3d-stealthmouse-anwendung

Most powerful graphic cards for GIS

AMD RadeonPRO & NVIDIA Quadro


The right choice of graphic cards is a big part when determining quality and performance.

The right choice of graphic cards is a big part when determining quality and performance.
With 16GB high speed HBM2 ECC RAM, Open GL 4.5 support and 4.096 OpenCL capable parallel processing units, the AMD RadeonPRO WX9100 delivers outstanding performance and quality.
Only the AMD FirePRO and RadeonPRO cards have implemented the mirroring and rotation functionality to drive the 3D PluraView with 2x 4k.
The new driver 17.Q4 enable the long awaited feature that 10bit color depth is also availible with QuadBuffer Stereo.
NVIDIA Quadro P5000 offers an up to now not achieved performance and scalability, for analyzing and visualizing large databases. With up to 2.048 CUDA/OpenCL programmable, parallel processing units and a graphic memory of 8GB GDDR-5 ECC, the Quadro P5000 is the perfect solution for complex applications such as biomedical sciences and seismic research, oil and gas prospection or photogrammetry.

With only one professional graphic card, you can control two monoscopic monitors and one 3D PluraView evaluation screen at the same time with the six monitor outputs of the AMD RadeonPRO WX9100. Even two 3D PluraView stereo monitors are selectable with just one graphic card.

The use of the correct driver is just as important, because only the ideal interaction between graphic card driver and application ensures full graphic card performance. It takes constant adapting of hardware drivers to guarantee a smooth operation with perfect results thus explaining the immense development effort from AMD and NVIDIA.

If the OpenGL core is up to date the graphic memory bandwidth measured by GB/sec and main memory size of the graphic card is more significant. Modern OpenGL commands are loading the complete model into the graphic card RAM. All further changes are triggered by short OpenGL commands to the GPU and being utilized directly at the graphic memory. The finished result is transferred to the monitor outputs immediately.



GIS Performance-Workstations

High-End Workstation-Solutions for complex GIS-Requirements


Schneider Digital has been specializing in tailor-made hardware solutions for professional 3D graphics since 1995. The company’s expertise is focused on the conception, build and configuration of performance workstations, which are exceled by flexible upgrade options and long-term upgrade ability.

By the collaboration with many hardware manufacturers, software companies and independent research institutes we’re informed at first-hand about the most recent developments. Our close contacts to various users are equally valuable for us. The result is a Workstation solution from practical experience for practical application.

The challenge for GIS-applications is the combination of loading quickly large data quantities and visualizing them in a stereoscopic image on a suitable 3D monitor. Only if all hardware components display the required capacities and specialization, a fast motion within orthophotos is possible.

We not only know your applications in the main area of application for photogrammetry, geodesics, but also right up to the creation of 3D city models, digital GIS landscape models or even special tasks like architecture and accident photogrammetry.

  • Newest Intel Xenon or AMD EPYC processor technology
  • Up to four high-end graphic cards for CUDA or OpenCL applications in one workstation
  • High speed processors (up to 2x 28 cores on Intel platform, up to 2x 32 cores with AMD EPYC)
  • Up to 2 TB fast DDR-4 ECC memory
  • High performance RAID with up to 12 GB/s transfer rate (SAS 3.0 technology), high speed SSD (Solid State Disks) up to 10 TB memory on request
  • Optional ultra-fast 10Gb LAN for connection to the file server
  • highest quality of used components
  • 19” Rackmount compatible
  • Also server and cluster solutions possible
